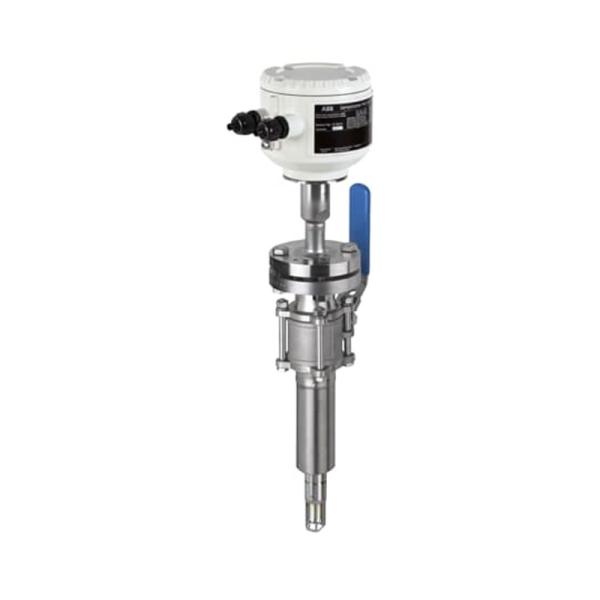

Vortex flowmeter VortexMaster FSV430
VortexMaster FSV430 is the basic meter for volume flow applications. Available in flange-mount and wafer-type designs, VortexMaster FSV430 uses a two-wire transmitter with leading edge DSP-technology with excellent vibration compensation. Intuitive operation directly through the glass makes the FSV430 incredibly user-friendly.
Looking for a vortex flowmeter with integrated energy calculation?
Lean more about VortexMaster FSV450.
Looking for a flowmeter that can be installed where others cannot due to space restrictions?
Learn more about the SwirlMaster FSS430.
Overview
VortexMaster flowmeters accurately measure the flow of gases, liquids and steam over a wide range of temperatures. Vortex meters are ideal for use on all kinds of gases, low viscose liquids, and demineralized water, and they are ideal for direct, cost-effective steam mass flow measurement.
VortexMaster FSV430 is available with multiple communication protocols, such as HART 7, Modbus RTU, Profibus PA and FOUNDATION Fieldbus.
Optionally available:
- HMI for easy meter set up
- Integrated RTD for temperature compensation and saturated steam mass flow calculation
- Digital outputs for pulses, frequency and alarm signalization
- Remote transmitter with up to 30m (98 ft.) cable length
- Stainless steel transmitter housings
Data
General specifications:
- Intuitive operation
– Easy Set-up function
– Clear text display
– Meter configuration through the front glass with closed cover - Accuracy for liquids
– +/- 0.65% of rate - Accuracy for gases and steam
– +/- 0.9% of rate - Process connection / meter sizes
– Flange-mount design / DN 15 to 300 (1/2 to 12 in.)
– Wafer type design / DN 25 to 150 (1 to 6 in.) - Approvals for explosion protection
– ATEX, IECEx, cFMus, NEPSI - SIL2-certified in accordance with IEC 61508
- Output / communication
– 4 to 20 mA / HART 7
– Modbus RTU-RS485 - Optional binary output
– For use as a limit switch, pulse output or frequency output - Optional input from field
– Pressure, temperature, methane content, density gas analyzer
