FEH630 ABB Flow Meter Electromagnetic Flowmeter HygienicMaster

Brand Name : ABB

Model Number : FEH630

Accuracy : High

Communication Protocol : HART, PROFIBUS, FOUNDATION Fieldbus

Fluid : Gas, Liquid

Installation Type : In-line, Insertion

Material : Stainless Steel, Alloy Steel, Titanium

Measuring Principle : Differential Pressure

Output Signal : 4-20mA

Pressure Range : 0-100Bar

Process Connection : Flange, Thread, Sanitary

Product Name : ABB Flow Measurement Products

Product Type : Flow Measurement

Range : Wide

Temperature Range : 0-150℃

Warranty : 1 Years

Contact Now

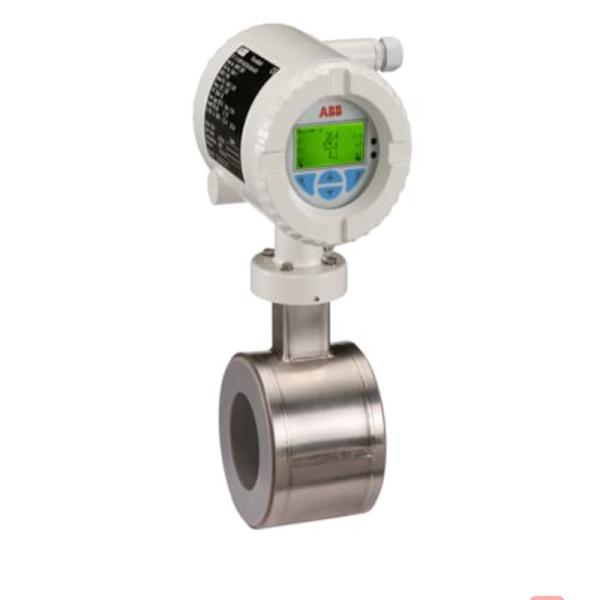

Electromagnetic flowmeter HygienicMaster FEH630

Designed to meet highest levels of demands for enhanced metering in the Food & Beverage industry, HygienicMaster FEH630 delivers more than reliable and accurate measuring values.
This innovative next generation of electromagnetic flowmeters provides a modular transmitter design combined with SmartSensor technology and built-in verification – technical advances that deliver a clear business and performance benefit.
The sensor-design ensures optimum protection from breathing and condensation.
Exchangeable process connections for maximum flexibility, simplified installation and reduce inventory. The sensor is CIP/SIP cleanable, FDA approved and certified in accordance with 3A.
Ethernet IP communication increases operational performance and delivers more real-time data for a better decision making.
HygienicMaster FEH630 is one of the most cost saving flowmeters on the market and ideally suited for all hygienic applications.

Overview

HygienicMaster FEH630 – The first choice for all hygienic applications.
Advanced features and functionality that enable you to operate more efficiently, reduce costs and increase profitably.

Real-time diagnostic keep your process up and running
– Detecting critical process conditions at an early stage reduce unscheduled downtime and maintenance
– Clear text messages simplify troubleshooting
In-built noise/grounding check
– Verify the installation is correct from day one
– Checks for proper grounding which is fundamental to an accurate flow measurement
In-built verification for highest confidence in your flow measurement
– Checking for sensor and transmitter Integrity
– No need to remove the flowmeter from the process
Simplicity of operation
– Automatic self-configuration sequence
– Incredibly easy to work with
Ethernet IP communication
– For remote access to built-in diagnostic monitoring the flowmeter and your process
– Flowmeter verification and configuration over Ethernet minimizing commissioning time
– Built-in webserver, no additional software required for flowmeter configuration

Data

General specifications:

Measuring value error
– 0.4 % of rate, Option for 0.3% or 0,2%
Nominal diameter
– DN 1 to 100 (1/25 to 4 in.)
Process connection
– Weld stubs, threaded pipe connections, Tri-clamps, wafer-type, flanges, external threads, flanges in accordance with DIN/EN, ASME, JIS
Nominal pressure
– PN 10 to 40, ASME CL 150, 300
Lining
– PFA vacuum stable
IP rating
– IP67 or IP68
Fluid temperature
– Up to 180 °C (356 °F)
Communication
– HART
– PROFIBUS DP, Profibus PA
– Modbus RTU, Modbus TCP
– Ethernet IP, Profinet
- Webserver
Process diagnostics
– Empty pipe, gas bubbles, electrode impedance, conductivity, sensor temperature
Certificates
– 3A, FDA approved materials
